Life Raft, LRU-1/P

The LRU-1/LRU-13 Life Raft Assembly is used by air crewman in the event of an emergency. It consists of an inflation assembly (CO2 cylinder and inflation valve) and a seven-man raft.

LSI Product ID: flo-3400-00

AID Milspec: MIL-L-5567



With Sea Anchor-NO CO2/CASE

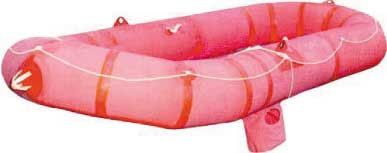

The LRU-1/P Life Raft Assembly consists of an inflation assembly (CO2 cylinder and inflation valve) and a seven-man raft. The Life Raft is made up of a two-compartment main tube; an inflatable seat attached to the main tube; a non-inflatable floor attached to the bottom of the main tube and inflatable seat; and a sea anchor which is used to retard drifting. A lifeline, rope ladder, supply pocket and a combination supply pocket and bailer are attached to the main tube. Boarding handles are attached to the main tube and the floor and righting handles are attached to the underside of the floor. Emergency survival equipment and raft accessories, stowed in accessory containers, areprovided for the safety and survival of the aircrewmembers. The lifeline also provides a means for securing the accessory containers to the raft.

The LRU-1/LRU-13 Life Raft Assembly is used by aircrewman in the event of an emergency. The life raft may be stowed in a readily accessible area in-side the fuselage or aircraft life raft compartment of applicable aircraft.

LSI Part No: FLO-3400-00 - LRU-1/P
LSI Part No: FLO-3403-00 - LRU-13/A

US Mil-Spec: MIL-L-5567. LSI Part No. is not for complete life raft assembly. CO2 Inflation assembly procured separately.

Aircraft Applications:

P-3B EP-3E HU-16D CH-46F
P-3C U-1B HH-3A CH-53A
WP-3A NU-1B SH-3A RH-53D
EP-3B U-11A CH-46A TH-57A
RP-3D HU-16C CH-46D
C-1A C-54S VC-54S KC-130F
C-47H C-54T C-117D DP-2E
C-47J VC-54N LC-117D NP-2E
C-54P VC-54P VC-117D SP-2E
C-54Q VC-54Q C-119F P-3A


Specifications:
CONFIGURATION
LSI P/N                                         DESCRIPTION
         MIL-REFERENCE
FLO-3400-00 LRU-1/P, Bare Raft with Sea Anchor MIL-L-5567
FLO-3400-00 LRU-13/A, Bare Raft with Sea Anchor MIL-L-5567
FLO-3303-00 LRU-13/A Sea Anchor, Case & CO2 Inflastion
FLO-3020-AD LRU-13/A HARD-7 Air Drop, Vacuum Packed
FLO-3330-00 LRU-13/A, HARD-7 (S) with Survival Kit
FLO-3400-01 LRU-1/P, Inlfation Assembly, Cylinder & Valve

ACCESSORIES
LSI P/N                                         DESCRIPTION                                            MIL-REFERENCE
FLO-3301-00 LRU-13/A Survival Accessories
FLO-3302-00 LRU-13/A Canopy, Rod & Mast
FLO-3305-00 Case, LRU-13/A 62A82H601
FLO-3306-00 Sea Anchoe, LRU-13/A 62A82H1-23
FLO-3401-00 Survival Accessories per T.O. 14S-1-102
FLO-3403-00 LRU-1/P with CO2 Inflation & Case MIL-L5567
