Life Raft (T46), FAA Type I, 46-Man

Classic, Transport Category Aircraft, FAA TSO-C70a Type I Approved. For Commercial Airlines and Air Cargo use. Twin Tube. Rated Capacity: 46, Overload capacity: 69. Compact, lightweight, Constructed of neoprene coated nylon. High tech inflation system. Competitively priced.

LSI Product ID: flo-4490-00

AID Model: T46

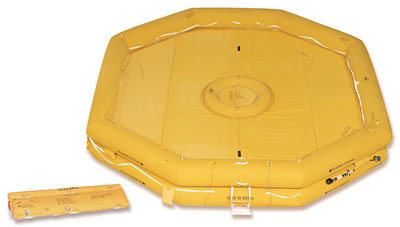

Transport series Rafts are self-inflating life rafts intended for use by aircraft crew members and passengers during overwater emergencies and are designed to provide safe, rapid and reliable means for aircraft egress in case of such and emergency.

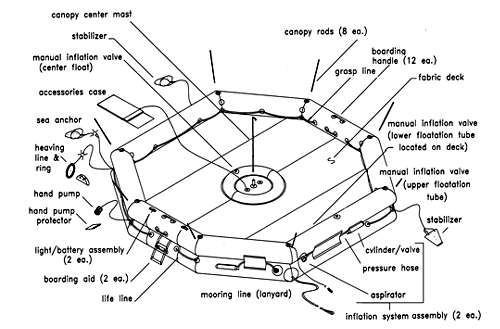

When deployed and in water, transport series life rafts may be boarded on either side.  Raft accessories are contained in an accessories case tied to the raft using a five (5) foot (1.52 meter) case tie line.  Accessories case is pulled onto raft by occupants subsequent to boarding.  The fabric deck is equipped with an inflatable center float to provide additional flotation support.  Center float is to be inflated by occupants subsequent to boarding using the hand pump supplied with raft equipment.

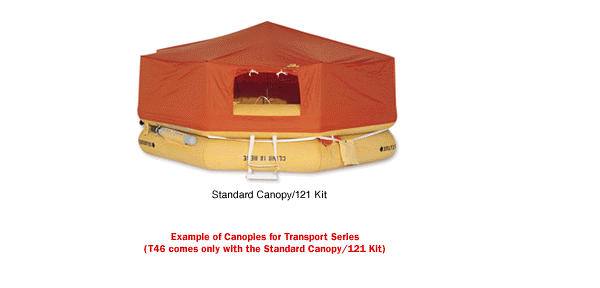

Raft canopy, located inside accessories case, featured two (2) roll-up doors and a rain water collector in the top of the roof panel.

Raft Specifications: Life Raft, 46-Man

  •  Part Number: FLO-4490-00
  •  Rated Capacity: 46 Persons
  •  Overload Capacity: 69 Persons
  •  Total Tube Buoyancy: 9422 lbs. (4273.8 kg)
  •  Deck Area per Person (at rated capacity): 3.60 sq ft (0.33 sq m)

    Custom Packs Available.
    Radio Beacons, Emergency locator Transmitters,
    Watermakers and Specialized Survival Kits Available.

    Notes:
  • Dimensions and weights shown are nominal and do not allow for pack expansion or swelling.
  • Tolerances of actual pack dimensions:
           -For dimensions of 5.5 inches and less = -0.25/+1.0 inches.
           -For dimensions greater than 5.5 inches: =± 0.5 inches.
  • For stowage compartment clearance, allow additional 0.5 to 1.5 inches in excess of final pack dimensions.
  • Tolerance of actual pack weight = ± 3.0 lbs.
  • Allow additional 2.0 to 4.0 lbs weight when ELT installed.

    Pack Specifications: Life Raft, 46-Man
Specifications:
Model No.DescriptionPacking Dimensions
L" x W" x H"
Weight
R202A201 T46 man-twin tube-type 1 - FAR 121 Kit 71" x 18.5" x 5.5" 100lb
R202A203 T46 man-twin tube-type 1 - FAR 121 Kit 50" x 20" x 8" 100lb
R202A203K T46 man-twin tube-type 1 - FAR 121 Kit/Supplemental Kit 50" x 20" x 8" 125lb
R202A207 T46 man-twin tube-type 1 - FAR 121 Kit 50" x 23" x 7" 100lb
R202A207-1 T46 man-twin tube-type 1 - FAR 121 Kit 48" x 24" 7" 100lb
R202A209 T46 man-twin tube-type 1 - FAR 121 Kit 30" x 27" x 6.5" 100lb
R202A211 T46 man-twin tube-type 1 - FAR 121 Kit 37" x 71" x 9.5" 100lb
R0202A213 T46 man-twin tube-type 1 - FAR 121 Kit 71" x 16.5" x 4.5/7" 100lb
R0202A213-1 T46 man-twin tube-type 1 - FAR 121 Kit 70" x 15.2" x 7.75" 100lb
