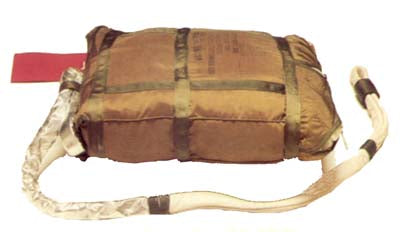

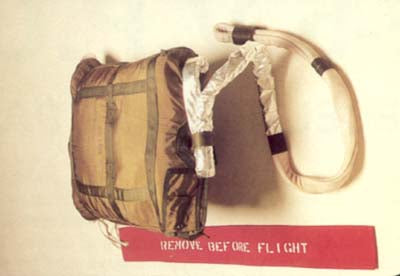

The Deceleration Assembly, LSI P/N: PAR-1160-00, is a deceleration parachute which was developed for use on the Northrup F-5 Tactical Fighter Aircraft.
Each Assembly is a complete, self-contained unit consisting of riser, buffers, protector sleeves, bridle lines, pilot chute, pin/streamer (temporary ripcord), deployment bag and canopy assembly.
DEPLOYMENT BAG
The deployment bag, LSI P/N: PAR-3025-00 (6-42305-1), is made of olive drab polyamide nylon and is designed for the aircraft deceleration parachute. Packed dimensions of the deployment bag are 14" x 3.5" x 14".
P/N: 6-42300-1 / 6-42300-0501
NSN # 1670-00-781-2210
Detailed Parts Breakdown and U.S. Part Number Cross Reference
Deceleration Parachute Assembly:
Each Assembly is a complete, self-contained unit consisting of riser, buffers, protector sleeves, bridle lines, pilot chute, pin/streamer (temporary ripcord), deployment bag and canopy assembly.
DEPLOYMENT BAG
The deployment bag, LSI P/N: PAR-3025-00 (6-42305-1), is made of olive drab polyamide nylon and is designed for the aircraft deceleration parachute. Packed dimensions of the deployment bag are 14" x 3.5" x 14".
P/N: 6-42300-1 / 6-42300-0501
NSN # 1670-00-781-2210
Detailed Parts Breakdown and U.S. Part Number Cross Reference
Deceleration Parachute Assembly:
| Qty per Unit | Description | US Ref | NSN | LSI P/N |
|---|---|---|---|---|
| 1 Each | Canopy | 6-42301-501 | 1670-00-781-2211 | PAR-1160-01 |
| 1 Each | Deployment Bag | 6-42305-1 | 1670-00-781-2215 | PAR-3025-00 |
| 1 Each | Pilot Chute | 6-42302-1 | 1670-00-781-2212 | PAR-1160-02 |
| 1 Each | Ripcord | 6-42310-1 | 1670-00-010-9985 | PAR-1160-03 |
| 1 Each | Riser | 6-42307-501 | 1670-00-781-0656 | PAR-1160-04 |
| 1 Each | Bridle, Short | 6-42306-1 | 1670-00-781-2216 | PAR-1160-05 |
| 1 Each | Bridle, Long | 6-42306-3 | 1670-00-902-2825 | PAR-1160-06 |
| 1 Each | Buffer | 6-42309-1 | 1670-00-793-0310 | PAR-1160-07 |
