Life Raft (T10AS), FAA Type I, 10-Man

FAA TSO-C70a TYPE I Approved. VIP Series Life Raft. Transport Category Aircraft. For Part 91, 121, 135 Operators (Corporate, Air Cargo, Air Taxi). Twin tube, Transport Series. Rated capacity: 10, Overload capacity: 15. Compact, lightweight, constructed of neoprene coated nylon. High tech inflation system. Competively priced.

LSI Product ID: t10as

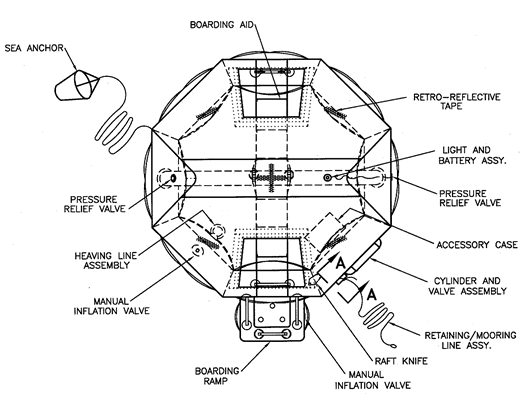

Using EAM's proven aviation technology, these twin-tube life rafts provide superior performance in a smaller, lighter package.  Buoyancy tubes are made from two-ply FAA approved, neoprene rubber coated fabric.  These rafts feature boarding ramps for easy entry, self-erecting canopies, and insulated double floors for insulation.  Composite inflation cylinders help keep the weight low.  Pack in soft fabric valise.

FEATURES

  • Automatic erecting canopy with inflatable canopy support.
  • Bright fluorescent orange canopy with retro-reflective tape panels for improved visibility.
  • Self-inflating boarding ramp for easy entry.
  • Rigid, telescoping rear boarding ladder.
  • Optional inflatable double floor inflates manually with hand pump for insulation in frigid waters.
  • High pressure nitrogen inflation system for rapid cold weather inflation.
  • Inflation system pressure gauge visible from outside of all packs for quick in-service checks.
  • Three (3) year recommended frequency of inspection
  • Cylinder inflation valve using puncture disc technology for long term leak resistance.
  • Survival kits packed in sealed, waterproof nylon pouch.
  • All 135, 135/JAR, and CARs survival kits include a reverse osmosis Watermaker.
  • Five (5) extra large Icelandic type water ballast bags provide for stability/capsize resistance.  Bags weighted for quick, automatic deployment.
  • Automatic deploying sea anchor.
  • Exterior lifeline and interior grasp line integrated into raft seams for added strength.

Pack Specifications: VIP Life Raft, 10-Man (T10AS)

  • Dimensions and weights shown are nominal and do not allow for pack expansion and swelling.
  • Unless otherwise specified, tolerances of actual pack dimensions are as follows: For dimensions of 5.5 inches and less = -0.25/+1.0.
  • For stowage compartment clearance, allow additional 0.5 to 1.5 inches in excess of final pack dimensions.
  • Allow additional 3.0 lbs. weight when ELT installed.

Model No. Description Packing Dimensions
L" x W" x H"
Weight
R1300-101 T10AS twin tube-type I - FAR 121-Ramp 32 +/- .5" x 17 +/- .5" x 8 +/- .5" 53.5lb
R1300-103 T10AS twin tube-type I - JAR 121-Ramp 32 +/- .5" x 17 +/- .5" x 8 +/- .5" 55.5lb
R1300-105 T10AS twin tube-type I - FAR135 Kit-Ramp-Watermaker 32 +/- .5" x 17 +/- .5" x 8.5 +/- .5" 64.5lb
R1300-107 T10AS twin tube-type I - JAR 135 Kit-Ramp-Watermaker 32 +/- .5" x 17 +/- .5" x 8.5 +/- .5" 64.5lb
R1300-109 T10AS twin tube-type I - FAR 121 Kit-Ramp-Inflatable Flr 32 +/- .5" x 17 +/- .5" x 8.5 +/- .5" 57lb
R1300-111 T10AS twin tube-type I - JAR 121 Kit-Ramp-Inflatable Flr 32 +/- .5" x 17 +/- .5" x 8.5 +/- .5" 59lb
R1300-113 T10AS twin tube-type I - FAR 135 Kit-Ramp-IF-Watermaker 32 +/- .5" x 17 +/- .5" x 8.5 +/- .5" 68lb
R1300-115 T10AS twin tube-type I - JAR 135 Kit-Ramp-IF-Watermaker 32 +/- .5" x 17 +/- .5" x 8.5 +/- .5" 68lb
R1300-117 T10AS twin tube-type I - 121 / CARS / OPS 3 Std Flr-Watermaker 32 +/- .5" x 17 +/- .5" x 8 +/- .5" 55.5lb
R1300-119 T10AS twin tube-type I - 135 / JAR OPS 3 Std Flr-Watermaker 32 +/- .5" x 17 +/- .5" x 8.5 +/- .5" 64.5lb
R1300-121 T10AS twin tube-type I - JAR OPS 3 / CARS 135 Kit-Ramp-IF-Watermaker 32 +/- .5" x 17 +/- .5" x 8.5 +/- .5" 59lb
R1300-123 T10AS twin tube-type I - JAR OPS 3 / 135 Kit-Ramp-IF-Watermaker 32 +/- .5" x 17 +/- .5" x 8.5 +/- .5" 68lb
R1300-127 T10AS twin tube-type I - FAR 121 Kit 24 +/- .5" x 16 +/- .5" x 10 +/- .5" 53.5lb
R1300-129 T10AS twin tube-type I - FAR 135 Kit-Ramp-Watermaker 29 +/- .5" x 16 +/- .5" x 9.5 +/- .5" 64.5lb
R1300-201 T10AS twin tube-type I - Deluxe 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 67lb
R1300-203 T10AS twin tube-type I - Deluxe 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 69lb
R1300-205 T10AS twin tube-type I - Deuxe 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 78lb
R1300-207 T10AS twin tube-type I -Deluxe 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 78lb
R1300-209 T10AS twin tube-type I - Deluxe 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 69lb
R1300-211 T10AS twin tube-type I - Deluxe 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 78lb
R1300-301 T10AS twin tube-type I - FAR 121-Ramp-HC 32 +/- .5" x 17.5 +/- .5" x 9 +/- .5" 65lb
R1300-303 T10AS twin tube-type I - JAR OPS1 / FAR 121-Ramp-HC 32 +/- .5" x 17.5 +/- .5" x 9 +/- .5" 67lb
R1300-305 T10AS twin tube-type I - FAR 135 Kit-Ramp-Watermaker-HC 32 +/- .5" x 17.5 +/- .5" x 9 +/- .5" 76lb
R1300-307 T10AS twin tube-type I - JAR OPS 1 / 135 Kit-Ramp-Watermaker-HC 32 +/- .5" x 17.5 +/- .5" x 9 +/- .5" 76lb
R1300-309 T10AS twin tube-type I - FARA 121 Kit-Ramp-Inflatable Flr-HC 32 +/- .5" x 17.5 +/- .5" x 9 +/- .5" 69lb
R1300-311 T10AS twin tube-type I - JAR OPS1 / FAR 121-Ramp, IF-HC 32 +/- .5" x 17.5 +/- .5" x 9 +/- .5" 71lb
R1300-313 T10AS twin tube-type I - FAR 135 Kit-Ramp-IF-Watermaker-HC 32 +/- .5" x 17 +/- .5" x 9 +/- .5" 80lb
R1300-315 T10AS twin tube-type I - JAR OPS 1 / 135 Kit-Ramp-IF-Watermaker-HC 32 +/- .5" x 17.5 +/- .5" x 9 +/- .5" 80lb
R1300-317 T10AS twin tube-type I - JAR OPS 1 / 121 / CARS Kit-Ramp-IF-Watermaker-HC 33.5 +/- .5" x 13.5 +/- .5" x 10 +/- .5" 75lb
