Life Raft (T6A), FAA Type I, 6-Man

Classic, Transport Category Aircraft, FAA TSO-C70a Type I Approved. For Commercial Airlines and Air Cargo use. Twin Tube. Rated Capacity: 6, Overload capacity: 9. Compact, lightweight, Constructed of neoprene coated nylon. High tech inflation system. Competitively priced.

LSI Product ID: flo-4354-00

AID Model: T6A

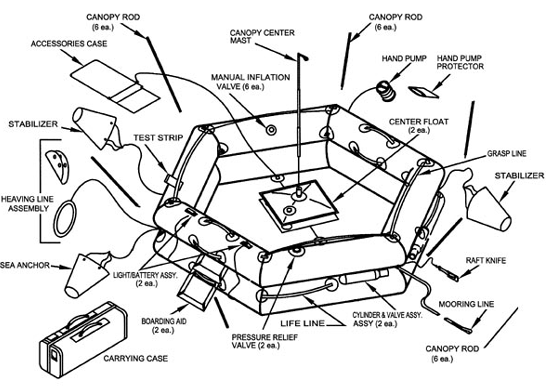

Transport series Rafts are self-inflating life rafts intended for use by aircraft crew members and passengers during overwater emergencies and are designed to provide safe, rapid and reliable means for aircraft egress in case of such and emergency.

When deployed and in water, transport series life rafts may be boarded on either side.  Raft accessories are contained in an accessories case tied to the raft using a five (5) foot (1.52 meter) case tie line.  Accessories case is pulled onto raft by occupants subsequent to boarding.  The fabric deck is equipped with an inflatable center float to provide additional flotation support.  Center float is to be inflated by occupants subsequent to boarding using the hand pump supplied with raft equipment.

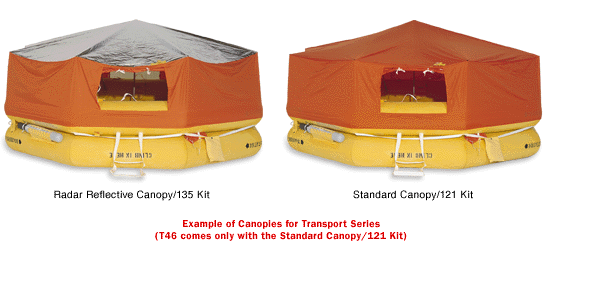

Raft canopy, located inside accessories case, featured two (2) roll-up doors and a rain water collector in the top of the roof panel.

Raft Specifications: Life Raft, 6-Man (6A)

  •  Part Number: FLO-4354-00
  •  Rated Capacity: 6 Persons
  •  Overload Capacity: 9 Persons
  •  Total Tube Buoyancy: 1543 lbs. (695.8 kg)
  •  Deck Area per Person (at rated capacity): 3.60 sq ft (0.33 sq m)

    Custom Packs Available.
    Radio Beacons, Emergency locator Transmitters,
    Watermakers and Specialized Survival Kits Available.

    Notes:
  • Dimensions and weights shown are nominal and do not allow for pack expansion or swelling.
  • Tolerances of actual pack dimensions:
           -For dimensions of 5.5 inches and less = -0.25/+1.0 inches.
           -For dimensions greater than 5.5 inches: = +/- 0.5 inches.
  • For stowage compartment clearance, allow additional 0.5 to 1.5 inches in excess of final pack dimensions.
  • Tolerance of actual pack weight = +/- 3.0 lbs.
  • Allow additional 2.0 to 4.0 lbs weight when ELT installed.





Specifications:
Model No.
Description Packing Dimensions
L" x W" x H"
Weight
R0425A101 T6A twin tube-type I - FAR 121
30.5" x 12" x 13.5"
45.5lb
R0425A103 T6A twin tube-type I - FAR 121
33" x 16" x 7"
45.5lb
R0425A105 T6A twin tube-type I - FAR 135 SP-3 Desalters
33" x 16" x 7"
53lb
R0425A107 T6A twin tube-type I - FAR 121 Kit
25.5" x 12" x 9"
45.5lb
R0425A109 T6A twin tube-type I - 121 / CAA Kit
25.5" x 12" x 9"
45.5lb
R0425A111 T6A twin tube-type I - FAR 121 Kit
22" x 15" x 8.5"
45.5lb
R0425A113 T6A twin tube-type I - JAA Kit
22" x 15" x 8"
47lb
R0425A115 T6A twin tube-type I - FAR 135 Kit-Watermaker
33" x 16" x 7"
53lb
R0425A117 T6A twin tube-type I - JAR 121 Kit
25.5" x 12" x 9"
47lb
R0425A303 T6A twin tube-type I - FAR 121 / JAR OPS
25.5" x 12" x 9"
41lb
