TSO-C13f Approved
UK CAA Approval No. AR01445
German LBA Approval No. 40.321/33

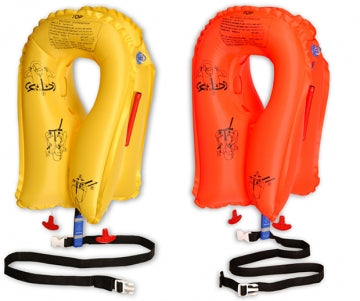

The XF-35 is the world's lightest weigt twin cell vest in the aviation market today, only 1.13 lbs. (513 grams). The XF-35 offers significant fuel savings to operators wishing to stay with the added security of a twin-cell vest. 5 year frequency of inspection standard. 10 year frequency of inspection available.
Notes:
- Some Life Vest Configurations have a Minimum Quantity Order Requirement
- Other part numbers available with cusomized packaging and/or logo markings for airline customers.
- Part Number suffix C indicates CREW VEST - Inflatable cells are molten orange color.
- Part Number suffix D indicates DEMONSTRATION VEST - Vests are non-approved, non-functioning, non-operational, and non-repairable units for pre-flight safety demonstration purposes only. Units are marked "DEMO" in red lettering.
- Part Number suffix P indicates that the battery plug removed from survivor locator light system.
- Part Number suffix W indicates a WHISTLE is attached by thether to life preserver and clipped to light system iwre for storage.
- Weight tolerance = +/- 0.05 lbs (0.02 kg)
- Language: UNIVERSAL
Specifications:
| Model No. |
Number of Cells |
Description | Color | Whistle | Reflective Tape |
Signal Kit |
Packing Dimensions L" x W" x H" |
Weight |
|---|---|---|---|---|---|---|---|---|
| P01074-101 | 2 | Single Buckle, Polybag, TSO-C13f | Yellow | No | No | No | 7" x 7" x 2" |
1.13lb |
| P01074-101C | 2 | Single Buckle, Polybag, TSO-C13f | Orange | No | No | No | 7" x 7" x 2" | 1.13lb |
| P01074-101M | 2 | Single Buckle, Polybag, TSO-C13f | Yellow | No | No | No | 7" x 7" x 2" | 1.13lb |
| P01074-101R | 2 | Single Buckle, Polybag, TSO-C13f | Yellow | No | Yes | No | 7" x 7" x 2" | 1.13lb |
| P01074-101W | 2 | Single Buckle, Polybag, TSO-C13f | Yellow | Yes | No | No | 7" x 7" x 2" | 1.13lb |
| P01074-101WC | 2 | Single Buckle, Polybag, TSO-C13f | Orange | Yes | No | No | 7" x 7" x 2" | 1.13lb |
| P01074-103 | 2 | Single Buckle, Polybag, TSO-C13f | Yellow | No | No | No | 10" x 4.8" x 2" |
1.13lb |
| P01074-103C | 2 | Single Buckle, Polybag, TSO-C13f | Orange | No | No | No | 10" x 4.8" x 2" | 1.13lb |
| P01074-103W | 2 | Single Buckle, Polybag, TSO-C13f | Yellow | Yes | No | No | 10" x 4.8" x 2" | 1.13lb |
| P01074-103WC | 2 | Single Buckle, Polybag, TSO-C13f |
Orange | Yes |
No | No | 10" x 4.8" x 2" | 1.13lb |
| P01074-109 | 2 | Single Buckle, Fabric Pouch, TSO-C13f | Yellow | No | No | No | 7.5" x 3.75" x 2.5" | 1.16lb |
| P01074-109C | 2 | Single Buckle, Fabric Pouch, TSO-C13f | Orange | No | No | No | 7.5" x 3.75" x 2.5" | 1.16lb |
| P01074-111 | 2 | Single Buckle | Yellow | No | No | No | 7" x 7" x 2" | 1.13lb |
| P01074-111C | 2 | Single Buckle, Vinyl Bag, TSO-C13f | Orange | No | No | No | 7" x 7" x 2" | 1.13lb |
| P01074-111W | 2 | Single Buckle, Vinyl Bag, TSO-C13f | Yellow | Yes | No | No | 7" x 7" x 2" | 1.13lb |
| P01074-111WC | 2 | Single Buckle, Vinyl Bag, TSO-C13f |
Orange | Yes | No | No | 7" x 7" x 2" | 1.13lb |
| P01074-113 | 2 | Single Buckle, Polybag, TSO-C13f | Yellow | No | No | No | 7.5" x 5" x 2.25" |
1.13lb |
| P01074-113C | 2 | Single Buckle, Polybag, TSO-C13f | Orange | No | No | No | 7.5" x 5" x 2.25" | 1.13lb |
| P01074-113W | 2 | Single Buckle, Polybag, TSO-C13f | Yellow | Yes | No | No | 7.5" x 5" x 2.25" | 1.13lb |
| P01074-113WC | 2 | Single Buckle, Polybag, TSO-C13f | Orange | Yes | No | No | 7.5" x 5" x 2.25" |
1.13lb |
| P01074-115 | 2 | Single Buckle, Polybag, TSO-C13f | Yellow | No | No | No | 8" x 4.5" x 3" | 1.13lb |
| P01074-115C | 2 | Single Buckle, Polybag, TSO-C13f | Orange | No | No | No | 8" x 4.5" x 3" | 1.13lb |
| P01074-115W | 2 | Single Buckle, Polybag, TSO-C13f | Yellow | Yes | No | No | 8" x 4.5" x 3" | 1.13lb |
| P01074-115WC | 2 | Single Buckle, Polybag, TSO-C13f | Orange | No | No | No | 8" x 4.5" x 3" | 1.13lb |
| P01074-137 | 2 | Single Buckle, Polybag, TSO-C13f | Yellow | No | No | No | 8" x 4.5" x 3" | 1.13lb |
| P01074-137C | 2 | Single Buckle, Polybag, TSO-C13f | Orange | No | No | No | 8" x 4.5" x 3" | 1.13lb |
| P01074-137W | 2 | Single Buckle, Polybag, TSO-C13f | Yellow | Yes | No | No | 8" x 4.5" x 3" | 1.13lb |
| P01074-137WC | 2 | Single Buckle, Polybag, TSO-C13f | Orange | No | No | No | 8" x 4.5" x 3" |
1.13lb |
| P01074-143C | 2 | Single Buckle, Fabric Pouch, TSO-C13f | Orange | No | No | No | 7.5" x 3.75" x 2.5" |
1.16lb |
| P01074-143WC | 2 | Single Buckle, Fabric Pouch, TSO-C13f | Orange | Yes | No | No | 7.5" x 3.75" x 2.5" | 1.16lb |
| P01074-151W | 2 | Single Buckle, Polybag, TSO-C13f | Yellow | Yes | No | Yes | 7" x 7" x 3.5" |
2.13lb |
| P01074-151WC | 2 | Single Buckle, Polybag, TSO-C13f | Orange | Yes | No | Yes | 7" x 7" x 3.5" | 2.13lb |
| P01074-201 | 2 | Single Buckle, Fabric Pouch, TSO-C13f | Yellow | No | No | No | 7.5" x 5" x 2.25" |
1.2lb |
| P01074-201C | 2 | Single Buckle, Fabric Pouch, TSO-C13f | Orange | No | No | No | 7.5" x 5" x 2.25" | 1.2lb |
| P01074-201CR | 2 | Single Buckle, Fabric Pouch, TSO-C13f | Orange | No | Yes |
No | 7.5" x 5" x 2.25" | 1.2lb |
| P01074-201R | 2 | Single Buckle, Fabric Pouch, TSO-C13f | Yellow | No | Yes | No | 7.5" x 5" x 2.25" | 1.2lb |
| P01074-201W | 2 | Single Buckle, Fabric Pouch, TSO-C13f | Yellow | No | No | No | 7.5" x 5" x 2.25" | 1.2lb |
| P01074-201WC | 2 | Single Buckle, Fabric Pouch, TSO-C13f | Orange | Yes | No | No | 7.5" x 5" x 2.25" | 1.2lb |
| P01074-205W | 2 | Single Buckle, Fabric Pouch, TSO-C13f | Yellow | Yes | No | No | 7.5" x 5" x 2.25" | 1.23lb |
| P01074-207 | 2 | Single Buckle, Fabric Pouch, TSO-C13f | Yellow | No | No | No | 6.5" x 4" x 3.5" |
1.23lb |
| P01074-207W | 2 | Single Buckle, Fabric Pouch, TSO-C13f | Yellow | Yes | No | No | 6.5" x 4" x 3.5" | 1.23lb |
| P01074-207WC | 2 | Single Buckle, Fabric Pouch, TSO-C13f | Orange | Yes |
No | No | 6.5" x 4" x 3.5" | 1.23lb |
