ACES II Ejection Seats are in use in A-10, F-15, F-16, B-1, and B-2 aircraft.
Description
The ACES II Ejection Seat Stabilizing Drogue Parachute System (LSI P/N: PAR-1610-00) is deployed during moderate and high speed ejections. The Drogue parachute System deploys immediately after the seat leaves the rail, approximately 0.16 seconds during mode two and three escape sequences. The ACES II Ejection Seat Stablilizing Drogue Parachute system stabilizes seat altitude and trajectory while decelerating the seat velocity.
Major Components
The ACES II Ejection Seat Stabilizing Drogue Parachute system is offered in accordance with J114712-501 and NSN: 1670-01-053-4196. The system includes:
Detailed Parts Breakdown:

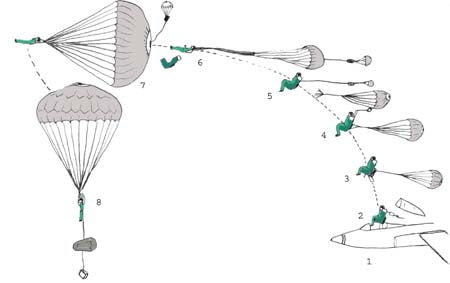

Diagram Note: ACES II Ejection Seat Stabilizing Drogue Parachute is represented here in escape sequences 1-4.
Description
The ACES II Ejection Seat Stabilizing Drogue Parachute System (LSI P/N: PAR-1610-00) is deployed during moderate and high speed ejections. The Drogue parachute System deploys immediately after the seat leaves the rail, approximately 0.16 seconds during mode two and three escape sequences. The ACES II Ejection Seat Stablilizing Drogue Parachute system stabilizes seat altitude and trajectory while decelerating the seat velocity.
Major Components
The ACES II Ejection Seat Stabilizing Drogue Parachute system is offered in accordance with J114712-501 and NSN: 1670-01-053-4196. The system includes:
Detailed Parts Breakdown:
| Qty | Description | LSI P/N |
|---|---|---|
| 1 Each | Deployment Yoke | PAR-1610-01-111 |
| 1 Each | Extraction Chute | PAR-1610-01 |
| 1 Each | High Drag Bridle | PAR-1610-02 |
| 1 Each | Drogue Canopy | PAR-1610-03 |
| 1 Each | Drogue Riser | PAR-1610-03-1 |
| 1 Each | Riser Body | PAR-1610-03-2 |
| 1 Each | Tow Line | PAR-1610-04 |
| 1 Each | Loop R & S | PAR-1610-05 |
| 1 Each | Disconnect Cord | PAR-1610-0003 |
| 1 Each | Anti-Squid Line | PAR-1610-0016 |
| 1 Each | Riser Arm | PAR-1610-03-3 |
| 1 Each | Lock Tab | PAR-1610-06 |
Diagram Note: ACES II Ejection Seat Stabilizing Drogue Parachute is represented here in escape sequences 1-4.
