Life Raft (T4AS), FAA Type I, 4-Man

FAA TSO-C70a TYPE I Approved. VIP Series Life Raft. Transport Category Aircraft. For Part 91, 121, 135 Operators (Corporate, Air Cargo, Air Taxi). Twin tube, Transport Series. Rated capacity: 4, Overload capacity: 6. Compact, lightweight, constructed of neoprene coated nylon. High tech inflation system. Competively priced.

LSI Product ID: r1200

AID Model: T4AS



Using EAM's proven aviation technology, these twin-tube life rafts provide superior performance in a smaller, lighter package.  Buoyancy tubes are made from two-ply FAA approved, neoprene rubber coated fabric.  These rafts feature boarding ramps for easy entry, self-erecting canopies, and insulated double floors for insulation.  Composite inflation cylinders help keep the weight low.  Pack in soft fabric valise.

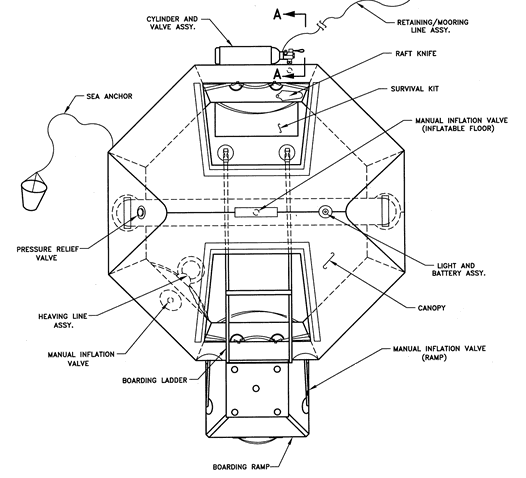

FEATURES

  • Automatic erecting canopy with inflatable canopy support.
  • Bright fluorescent orange canopy with retro-reflective tape panels for improved visibility.
  • Choice of self inflating boarding ramp or rigid boarding ladder.
  • Optional inflatable double floor inflates manually with hand pump for insulation in frigid waters.
  • High pressure nitrogen inflation system for rapid cold weather inflation.
  • Inflation system pressure gauge visible from outside of all packs for quick in-service checks.
  • Three (3) year recommended frequency of inspection
  • Cylinder inflation valve using puncture disc technology for long term leak resistance.
  • Survival kits packed in sealed, waterproof nylon pouch.
  • All 135, 135/JAR, and CARs survival kits include a reverse osmosis Watermaker.
  • Four (4) extra large Icelandic type water ballast bags provide for stability/capsize resistance.  Bags weighted for quick, automatic deployment.
  • Automatic deploying sea anchor.
  • Exterior lifeline and interior grasp line integrated into raft seams for added strength.


Pack Specifications: VIP Life Raft, 4-Man (T4AS)

  • Dimensions and weights shown are nominal and do not allow for pack expansion and swelling.
  • Unless otherwise specified, tolerances of actual pack dimensions are as follows: For dimensions of 5.5 inches and less = -0.25/+1.0.
  • For stowage compartment clearance, allow additional 0.5 to 1.5 inches in excess of final pack dimensions.
  • Allow additional 3.0 lbs. weight when ELT installed.


Model No. Description Packing Dimensions
L" x W" x H"
Weight
R1400-101 T14AS twin tube-type I - FAR 121-Ramp 32 +/- .5" x 17 +/- .5" x 9 +/- .5" 60lb
R1400-103 T14AS twin tube-type I - JAR 121-Ramp 32 +/- .5" x 17 +/- .5" x 9 +/- .5" 65lb
R1400-105 T14AS twin tube-type I - FAR 135 Kit-Ramp-Watermaker 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 73lb
R1400-107 T14AS twin tube-type I - JAR 135 Kit-Ramp-Watermaker 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 74lb
R1400-109 T14AS twin tube-type I - FAR 121 Kit-Ramp-Inflatable Flr 32 +/- .5" x 17 +/- .5" x 9 +/- .5" 67lb
R1400-111 T14AS twin tube-type I - JAR 121 Kit-Ramp-Inflatable Flr 32 +/- .5" x 17 +/- .5" x 9 +/- .5" 73lb
R1400-113 T14AS twin tube-type I - FAR 135 Kit-Ramp-IF-Watermake 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 81lb
R1400-115 T14AS twin tube-type I - JAR 135 Kit-Ramp-IF-Watermake 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 82lb
R1400-117 T14AS twin tube-type I - 121 / CARS / OPS 3 Std Flr-Watermaker 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 66lb
R1400-119 T14AS twin tube-type I - 135 / JAR OPS 3Std Flr-Watermaker 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 74lb
R1400-121 T14AS twin tube-type I - JAR OPS 3 / CARS 121 Kit-Ramp-IF-Watermaker 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 75lb
R1400-123 T14AS twin tube-type I - JAR OPS 3 / 135 Kit-Ramp-IF-Watermaker 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 83lb
R1400-125 T14AS twin tube-type I - FAR 135 Kit-Ramp-Watermaker 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 75lb
R1400-201 T14AS twin tube-type I - Deluxe - FAR 121 Kit-Ramp-Inflatable Flr 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 77lb
R1400-203 T14AS twin tube-type I - Deluxe - JAR 121 Kit-Ramp-Inflatable Flr-Watermaker 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 83lb
R1400-205 T14AS twin tube-type I - Deluxe - FAR 135 Kit-Ramp-IF-Watermaker 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 91lb
R1400-207 T14AS twin tube-type I - Deluxe - JAR 135 Kit-Ramp-IF-Watermaker 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 92lb
R1400-209 T14AS twin tube-type I - Deluxe - JAR OPS 3 / CARS 135 Kit-Ramp-IF-Watermaker 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 83lb
R1400-211 T14AS twin tube-type I - Deluxe - JAR OPS 3 / 135 Kit-Ramp-IF-Watermaker 32 +/- .5" x 17 +/- .5" x 9.5 +/- .5" 92lb
R1400-301 T14AS twin tube-type I - FAR 121-Ramp-HC 32 +/- .5" x 17.5 +/- .5" x 9.5 +/- .5" 75lb
R1400-303 T14AS twin tube-type I - JAR OPS1 / FAR 121-Ramp-HC 32 +/- .5" x 17.5 +/- .5" x 9.5 +/- .5" 80lb
R1400-305 T14AS twin tube-type I - FAR 135 Kit-Ramp-Watermaker-HC 32 +/- .5" x 17.5 +/- .5" x 9.5 +/- .5" 88lb
R1400-307 T14AS twin tube-type I - JAR OPS 1 / 135 Kit-Ramp-Watermaker-HC 32 +/- .5" x 17.5 +/- .5" x 9.5 +/- .5" 89lb
R1400-309 T14AS twin tube-type I - FAR 121 Kit-Ramp-Inflatable Flr-HC 32 +/- .5" x 17.5 +/- .5" x 9.5 +/- .5" 82lb
R1400-311 T14AS twin tube-type I - JAR OPS1 / FAR 121-RAMP-IF-HC-Watermaker 32 +/- .5" x 17.5 +/- .5" x 9.5 +/- .5" 88lb
R1400-313 T14AS twin tube-type I - FAR 135 Kit-Ramp-IF-Watermaker-HC 32 +/- .5" x 17.5 +/- .5" x 9.5 +/- .5" 96lb
R1400-315 T14AS twin tube-type I - JAR OPS 1 / 135 Kit-Ramp-IF-Watemaker-HC 32 +/- .5" x 17.5 +/- .5" x 9.5 +/- .5" 97lb
