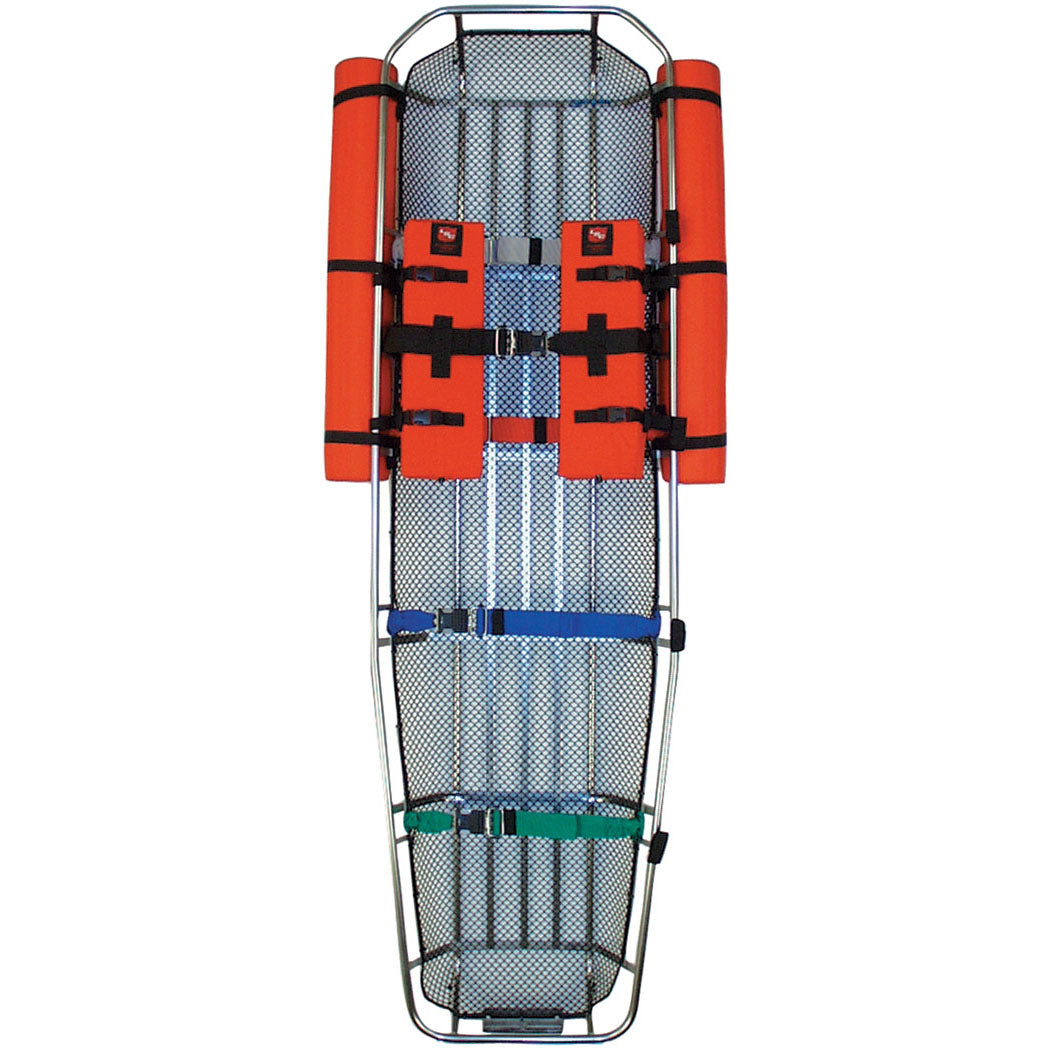

Litter, Medevac II, 1-Piece

The Medevac II is a 1-piece stokes litter constructed of 304 stainless steel and then powder coated a light gray for a long lasting finish. Exceeds 2,500 lb Load Test requirements for Mil-Spec stretchers.

LSI Product ID: rs-404

AID NSN: 6530-01-338-6094

AID Model: 404



The Medevac II™ series of litters are the most widely used helicopter rescue litters in the world. Currently in use with all branches of the US Military, the Japanese Self Defense Force, Canadian rescue organizations, Royal Australian Army, and are standard equipment aboard all US Coast Guard helicopters and rescue boats. The Medevac II is modern Stokes-type litters constructed with the marine environment in mind.

The Medevac II litters are constructed of 304 stainless steel and then powder coated a light gray for a long lasting finish.

The tubing used for the frame of these litters is 30% thicker than that used on MIL-SPEC litters. Included are 5 color-coded patient restraint straps with double locking Quick Release Safety Buckles. The troublesome wood rack used on the MIL-SPEC type Stokes litter has been replaced with stainless steel slats that run the full length of the litter. A smooth, plastic netting (with ½" openings) is used in place of the chicken wire liner. Optional flotation kits are available for each litter.

FEATURES

  • APPROVED FOR US MILITARY & NATO USE.
  • Exceeds 2,500 lbs load test requirements for MIL-SPEC litters
  • Corrosion Resistant - designed for the marine environment.
  • Hoistable with horizontal hoisting slings (optional - sold Separately)
  • Stainless steel or lightweight Titanium tubular construction

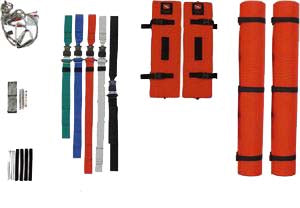

The RS-404-F includes a factory installed Flotation Kit.
Specifications:

NSN: 6530-01-338-6094 (stainless #404)

Weight:
Stainless Steel Litter at 32 lbs (42 lbs with flotation);
Titanium Litter at 21 lbs (31 lbs with flotation)

Dims: 24"W x 7"D x 84" L or 24" x 7" x 78"

Models:

  • RS-404: Medevac II Litter, Stainless Steel, 24 x 84"
  • RS-404-F: Medevac II Litter, Stainless Steel, 24 x 84" w/ Flotation Kit  (#RS-101)
  • RS-404-FN: Medevac II Litter, Stainless Steel, 24 x 84" w/ Narrow Floation Kit (RS-103)
  • RS-404-TI: Medevac II Litter, Titanium, 24 x 84"
  • RS-404-TI-F: Medevac II Litter, Titanium, 24 x 84" w/ Flotation Kit (#103-TI)
  • RS-404-D: Medevac II Litter, Stainless Steel, 24 x 78"
  • RS-404-D-F: Medevac II Litter, Stainer Steel, 24 x 78" w/ Flotation Kit (RS-101)
  • RS-404-D-TI: Medevac II Litter, Titanium, 24 x 78"
  • RS-404-D-TI-F: Medevac II Litter, Titanium, 24 x 78" w/ Flotation Kit (#103-TI)
