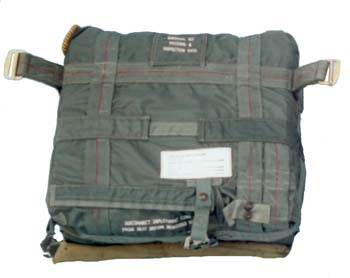

The ACES II Ejection Seat Survival Kit Container Assembly (LSI P/N: SUR-4810-00) consists of the following:
FUNCTION
The ACES II Survival Kit Container Assembly (SUR-4810-00) is attached to the seat pan of an ACES II Ejection Seat of an F-16 or F-15 aircraft. After ejection and deployment of the parachute, the survival kit is deployed by pulling a single lanyard, dropping survival equipment approximately 30 feet below the survivor.
DETAILED PARTS BREAKDOWN
OPTIONAL EQUIPMENT
- Seat Pan & Cushion
- Outer Case
- Adjusters, 2 each
- Manifold Assembly
- Adjustment Strap Assemblies, 2 each
- Nylon Ripcord Assembly
- Water Resistant Inner Pack Assembly
- Dropline Assembly
- Bag and Keeper Assembly
- Locking Cord Assembly
FUNCTION
The ACES II Survival Kit Container Assembly (SUR-4810-00) is attached to the seat pan of an ACES II Ejection Seat of an F-16 or F-15 aircraft. After ejection and deployment of the parachute, the survival kit is deployed by pulling a single lanyard, dropping survival equipment approximately 30 feet below the survivor.
DETAILED PARTS BREAKDOWN
| Description |
LSI P/N |
DWG/SPEC |
Ref Info |
| ACES II Ejection Seat Survival Kit Container Assembly | SUR-4810-00 | SUR-4810-00 | J114510-509 |
OPTIONAL EQUIPMENT
| Qty |
Description |
LSI P/N |
DWG/SPEC | Ref Info |
| 1 | Raft, 1 Person | FLO-7000-00 | LRU-16/P | 4220-01-003-6763 |
| 1 | Compass | COP-1000-00 | MIL-C-10436 | 6605-01-196-6971 |
| 2 | Signal Flare | SIG-5010-00 | MIL-S-18655 | MK-13 MOD O |
| 1 | Signal Kit | SIG-2000-00 | MIL-S-38409 | Type A/P25S-5A |
| *Alternate Signal Kit | SIG-1000-00 | MIL-S-38409 | MK-79 MOD O | |
| 1 | Mirror | SIG-8050-00 | MIL-M-18371 | Type II |
| 1 | First Aid Kit | LS-600-53 | 6545-01-094-8492 | |
| 1 | Radio | SIG-7000-00 | AN/PRC-90-2 | |
| *Alternate Radio | SIG-7030-00 | AN/PRC-106 | ||
| 1 | Water Drinking | WTR-1000-00 | MIL-W-15117 | 160.026/41/1 |
| 1 | Manual Survival | MAN-1000-00 | AF 64-5 | |
| 1 | Sheath Knife | KFE-3000-00 | MIL-K-8662 | 7340-292-9138 |
| 1 | Aluminum Blanket | BLK-1000-00 | MIL-B-36964 | 7210-00-935-6665 |
| 1 | Battery | SIG-7000-01 | BA-1568/U | 6135-00-838-0706 |
| 1 | Whistle | SIG-8500-00 | MIL-W-1053 | Plastic Police Type |
| 1 | Sea Dye Marker | SIG-8000-00 | MIL-S-17980 | |
| 1 | Plastic Bag | WTR-4000-00 | MIL-B-8571D | Size A |
| 1 | Matches | MTC-1000-00 | MIL-B-40042 | Qty. 18/case |
| 1 | Raft Repair Kit | FLO-9000-00 | 45-B-18979 |
