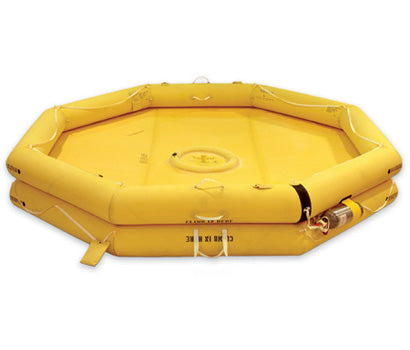

Life Raft (T32), FAA Type I, 32-Man

The T32 life raft is a self-inflating life raft intended for use by aircraft crew members and passengers during overwater emergencies and are designed to provide safe, rapid and reliable means for aircraft egress in case of such an emergency.

LSI Product ID: t32



- For Commercial Airlines and Air Cargo use
- Twin tube
- Compact, lightweight. Constructed of neoprene coated nylon
- High tech inflation system
- Competitively priced
- Rated Capacity: 32
-
Overload Capacity: 48

When deployed and in water, the T32 may be boarded on either side. Raft accessories are contained in an accessories case tied to raft using a 5 (five) foot (1.52 meter) case tie line.
Accessories case is pulled onto raft by occupants subsequent to boarding. The fabric deck is equipped with an inflatable center float to provide additional flotation support.
Center float is to be inflated by occupants subsequent to boarding using the hand pump supplied with raft equipment.
Raft canopy, located inside accessories case, features two (2) roll-up doors and a rain water collector in the top of the roof panel.

Specifications:
Model No.DescriptionPacking Dimensions
L" x W" x H"
Weight
R1700-101 T32 man-twin tube-type I - FAR 121 Kit- Composite Cylinder 38" x 14.5" x 9" 76lb
R1700-103 T32 man-twin tube-type I - FAR 121/ JAR OPS 1.830-Composite Cylinder 38" x 14.5" x 9" 81lb
R1700-105 T32 man-twin tube-type I - FAR 121/ JAR OPS 1.830-Composite Cylinder 36" x 19" x 10" 81lb
R1700-107 T32 man-twin tube-type I - FAR 135 Kit- Composite Cylinder 38" x 14.5" x 10.5" 107lb
R1700-109 T32 man-twin tube-type I - FAR 135 / 121/ JAR OPS 1.830-Composite Cylinder 38" x 14.5" 10.5" 109lb
R1700-111 T32 man-twin tube-type I - FAR 135 / 121/ JAR OPS 1.830-Composite Cylinder 36" x 19" x 12" 109lb
