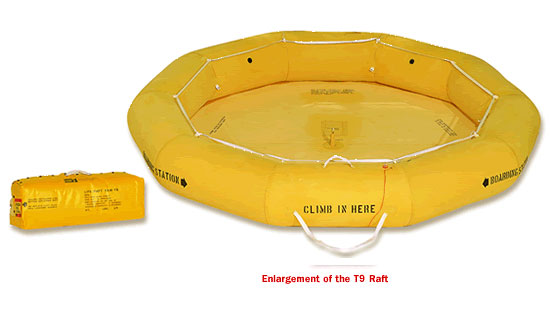

Life Raft (T9), Classic Raft, Single Tube, FAA Type II, 9-Man

USA: FAA TSO-C70a Type II Approved
Germany: LBA No. 40.320/13
Japan: JCAB No. 535
Australia: ANO

Classic Non-Transport Category Aircraft. For air taxi, corporate and general aviation. Single Tube. Compact, lightweight. Constructed of neoprene coated nylon. High tech inflation system. Competitively priced.

Rated Capacity: 9 Persons
Overload Capacity: 13 Persons


LSI Product ID: flo-4409-00

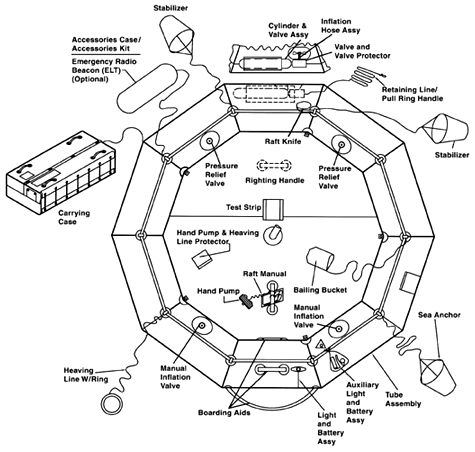

Non-Transport Series single tube life rafts are intended for crewmember and passenger use aboard aircraft during over water emergencies.  These rafts are comprised of a circular flotation tube compartmentalized into two chambers by vertical bulkheads and a fabric deck which is attached to the tube structure.  Neoprene coated nylon fabric is used throughout each raft design.  A combination life line/grasp assists in boarding.

These life rafts have a lanyard-activated, manually-operated carbon dioxide (CO2) inflation system.  A manually-operated hand pump, secured to the boarding station handle affords full inflation, or topping off of the flotation chambers, if required.  Each of the two compartmentalized chambers in maintained to equal pressure by individual pressure relief valves - one in each chamber.

Miscellaneous accessories are contained about the raft perimeter.  Appropriate instructions for the use of these accessories are printed on the tube and deck.  A raft instruction manual is tied to the boarding handle on the deck.

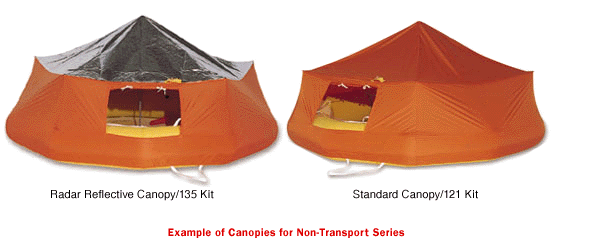

Each raft has a canopy which is stowed with survival kit items that are contained in a red or yellow accessory case attached by a line to a raft life line loop.  The canopy contains a door opening with a roll up door cover and a rainwater collector in the top or roof panel.  Canopy rods and a center mast are provided to support the canopy when it is erected.  The canopy, its center mast and supporting rods are encased in a protective bag.  Canopy sides can be raised or lowered as required.  In the Non-Transport Series rafts which have Federal Aviation Regulation (FAR) Part 135 survival equipment, the raft has a radar reflector which is an integral part of the canopy.  Life rafts with survival equipment under FAR part 121 rules do not require, and thus do not have, a radar reflector unless ordered as a special option.

Specifications:
PACK SPECIFICATIONS

 MODEL  KIT LENGTH  WIDTH  HEIGHT  WEIGHT  COMMENTS
(inches) (inches)  (inches) (pounds)
R0103A101  121 30 10 9 51.5 Radar Reflective Canopy
R0103A103  135 30 12 9 57.5 Standard
R0103A105  121 30 10 9 51.5 Standard
R0103A107  135 60 10 4 57.5
R0103A109  135 33 16 7 57.5 Ripcord Flat Pack
R0103A111
Military
AF  30 10 9 37.5 USAF Version w/Standard Canopy w/o Kit
R0103A113  135 Special  30 12 10 59 Special Singapore ANO Kit
R0103A115  121 34 17 6.5 51.5 Ripcord Flat Pack
R0103A117  AF  30 12 9 37.5 USAF Version w/Standard Canopy w/o Kit
R0103A119  AF  30 12 9 37.5 USAF Version w/Radar Reflective Canopy w/o Kit
R0103A121  121 30 10 9 51.5 Boeing 747 Freighter Version
R0103A125 121/JAR OPS 1 30 10 9 46.5 Special JAA JAR OPS 1.830(b)(2) kit. Includes Watermaker.
R0103A127 135 30 12 9 54 Same as A103 but with Watermaker instead of Desalter Kits.
R0103A123  121 33 16 7 51.5 Bombardier/DeHavilland Special Pack


Raft Specifications: Life Raft, 9-Man
  • Rated Capacity: 9Persons
  • Overload Capacity: 13 Persons
  • Total Tube Buoyancy: 1676 lbs. (760.23 kg)
  • Deck Area per Person (at rated capacity): 3.70 sq ft (0.34 sq m)

    Custom Packs Available.
    Radio Beacons, Emergency locator Transmitters,
    Watermakers and Specialized Survival Kits Available.

    Notes:
  • Dimensions and weights shown are nominal and do not allow for pack expansion or swelling.
  • Tolerances of actual pack dimensions:
    -For dimensions of 5.5 inches and less = -0.25/+1.0 inches.
    -For dimensions greater than 5.5 inches: = +/- 0.5 inches.
  • For stowage compartment clearance, allow additional 0.5 to 1.5 inches in excess of final pack dimensions.
  • Tolerance of actual pack weight = +/- 3.0 lbs.
  • Allow additional 2.0 to 4.0 lbs weight when ELT installed.
