FEATURES:
- Approved for commercial airline use
- Twin tube. Reversible
- Rated capacity 6, Overload capacity 9
- Compact, lightweight. Constructed of neoprene coated nylon
- High tech inflation system
- Competitively priced
- Rated Capacity: 6
- Overload Capacity: 9

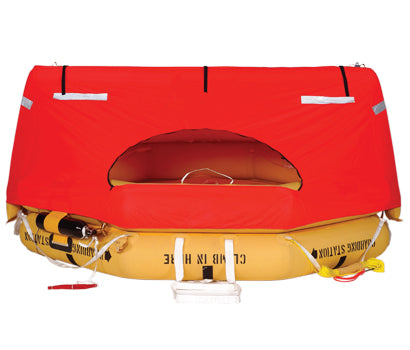

Pack Specifications: Life Raft, 6-Man (T6AX)
- When deployed and in water, the T6AX may be boarded on either side. Raft accessories are contained in an accessories case tied to raft using a 5 (five) foot (1.52 meter) case tie line.
- Accessories case is pulled onto raft by occupants subsequent to boarding. The fabric deck is equipped with an inflatable center float to provide additional flotation support.
- Center float is to be inflated by occupants subsequent to boarding using the hand pump supplied with raft equipment. T6AX has an rotatable canopy arch which can be inflated once inside the life raft.
- The canopy arch can quickly be inflated and the raft canopy positioned in place. The canopy features two (2) roll-up doors for easy entry and exit.
Model No. |
Description |
Packing Dimensions
|
Weight |
|||||
|
|
|
| 23.0+/-0.5 | 15.0+/-0.5 | 7.0+/-0.5 |
41.0
| R1750-703 |
| T6AX 6man Raft Twin tube-type I - FAR 121 / JAR OPS 1.830 (b) Std Canopy |
| 23.0+/-0.5 | 15.0+/-0.5 | 7.0+/-0.5 |
42.0
| R1750-705 |
| T6AX 6man Raft Twin tube-type I - FAR 135 Kit Std Canopy Watermaker |
| 23.0+/-0.5 | 15.0+/-0.5 | 8.0+/-0.5 |
47.0
| R1750-707 |
| T6AX 6man Raft Twin tube-type I - FAR 135 / JAR OPS 1.830 (b) Kit RR Canopy Watermaker |
| 23.0+/-0.5 | 15.0+/-0.5 | 8.0+/-0.5 |
48.0
| R1750-715 |
| T6AX 6man Raft, Twin tube-type I - FAR 135 /JAR OPS 1.830 (b) 2, RR Canopy |
| 22.25+/-0.5 | 17.5+/-0.5 | 7.5+/-0.5 |
49.0
| R1750-717 |
| T6AX 6man Raft Twin tube-type I - T6AX RAFT, FAR 135/JAR OPS 1.830 |
| 28.0+/-0.5 | 11.0+/-0.5 | 9.5max |
49.5
